Calgary and Area Special
Residential Solar Hot Water Retrofit Kit
$CALL FOR DETAILS
Our CSA component, split solar water heating system uses computer controlled pumps, valves, PV panels and controllers to circulate water or other heat-transfer fluids through the solar collectors. Our evacuated tube collectors can be used in either closed-loop or open-loop configurations.
The evacuated tubes are made from a type of glass called Borosilicate, also known as “Pyrex”. Borosilicate is used in
cookware in kitchens around the world. It is both strong and has excellent light transparency. Our Evacuated solar tubes are rated to withstand 1” hail.
The unique part about the evacuated tube design is that outside temperature does not transfer to the inside of the
evacuated tube. This is due to the massive vacuum between the 2 layers of glass, this vacuum acts a as a layer of insulation.
This means when there is sun light, the outside temperature could be -40*C and the internal tube temperature could be as high as +450*C. This thermo temperature is then transferred to the manifold via heat pipes inside of the evacuated tubes. The manifold moves the heat to the heating transfer fluid
(water/food safe glycol)
The water is heated by the Sun and UV rays using our high performance evacuated solar tubes (7000 Btu per Hr), and the temperature rises in the solar collector loop. Once the temperature of the solar collector loop rises above the storage tank temperature, the pumps start automatically to cool the collector loop down and the heat gets transferred to the storage tank via a heat exchanger.
Residential Solar Hot Water Retrofit Kit
$CALL FOR DETAILS
Our CSA component, split solar water heating system uses computer controlled pumps, valves, PV panels and controllers to circulate water or other heat-transfer fluids through the solar collectors. Our evacuated tube collectors can be used in either closed-loop or open-loop configurations.
The evacuated tubes are made from a type of glass called Borosilicate, also known as “Pyrex”. Borosilicate is used in
cookware in kitchens around the world. It is both strong and has excellent light transparency. Our Evacuated solar tubes are rated to withstand 1” hail.
The unique part about the evacuated tube design is that outside temperature does not transfer to the inside of the
evacuated tube. This is due to the massive vacuum between the 2 layers of glass, this vacuum acts a as a layer of insulation.
This means when there is sun light, the outside temperature could be -40*C and the internal tube temperature could be as high as +450*C. This thermo temperature is then transferred to the manifold via heat pipes inside of the evacuated tubes. The manifold moves the heat to the heating transfer fluid
(water/food safe glycol)
The water is heated by the Sun and UV rays using our high performance evacuated solar tubes (7000 Btu per Hr), and the temperature rises in the solar collector loop. Once the temperature of the solar collector loop rises above the storage tank temperature, the pumps start automatically to cool the collector loop down and the heat gets transferred to the storage tank via a heat exchanger.
- Cheap and reliable warming solution with simple structure and easy installation
- Save money every month on your gas/electric bill.
- As low as 3-5ry return of investment (depends on installation cost and location to south facing)
- Perfect for rental properties, As tenants can then pay a flat rate to you
- Can be used to heat hot tubs or tie in to in-floor heating.
- Rated up to 1” hail
- Can be used in our cold Canadian climate
- 7000 BTU Per HPC 200 Collector **can be upgraded to the 10,200 BTU per HPC 300 Collector**
- High efficiency with daily average efficiency higher than 80-85%
- Withstands full main pressure of household water supply
- 15yr warranty -- (not 3yrs like most other collectors local market)
- Digitally Controlled
(1) *7000> Btu *Solar Collector (w, vacuum tubes, heat pipes, and a solar vacuum tube)
(1) Water circulation pump with expansion tank
(1) Digital smart controller
(1) Solar Water Storage Tank (200L - 500L)
**plumbing components still required**
Storage tank available (Either 1 coil or 2 coil) up to 500 L ** standard package 200L, 1 coil**
Optional Accessories
- Solar water circulation pump and PV solar panel
- Secondary solar controller for in-ground floor heating
- 1500w Electric heating element controlled via Smart controller

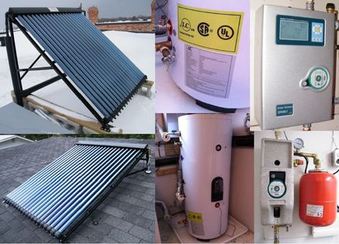

(1) 7000> BTU 30 TUBE COLLECTOR
(1) 200L SOLAR STORAGE TANK
(1) DIGITAL PUMP STATION

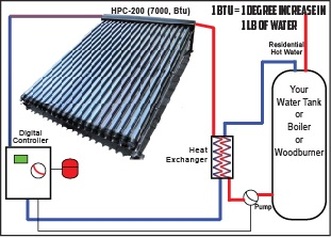

One Example of how we can heat your hot water tank
Our systems easily tie in to any existing plumbing system. The system we use for the Canadian climate is a closed loop system. As you can see in the diagram, our system circulates in a closed loop, not contacting you water, but exchanging heat.
How it works in simple form: our system circulates and gets heated from the Sun (7000 Btu per unit, per hr). When the system liquid is 4*C hotter than your hot water tank, a circulation pump turns on and transfers that heat to your hot water tank.
This process happens over and over again during the day when sun light is present, and stops at night.
How it works in simple form: our system circulates and gets heated from the Sun (7000 Btu per unit, per hr). When the system liquid is 4*C hotter than your hot water tank, a circulation pump turns on and transfers that heat to your hot water tank.
This process happens over and over again during the day when sun light is present, and stops at night.
